Voltmeter ATEA (0415)
Index: 0415
Year: 1934 ?
Maker: ATEA (Automatique Electrique de Belgique), Belgium
Dimensions: 12 x 10 x 6 cm (box)
Info

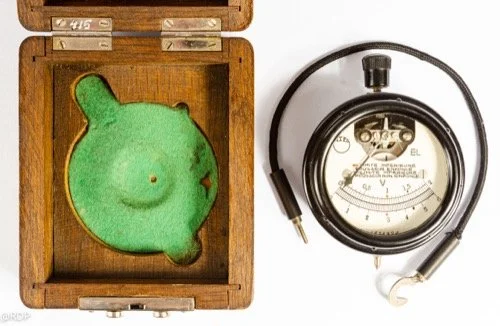

Handheld voltmeter. Assume specific for measuring cells as the dial indicates "EL" which I presume stands for "Element".
The scale has the ranges 0 to 2V and 0 to 6V. Indicated in red on the dial are the voltages 1 and 3. The range can be set to either 1 or 3 by using the dial switch on the back.
On the side, there is a red button which activates a resistance coil in the meter. Assume this serves as load to enable testing the cell under a load.
Inscriptions on the dial:
ATEA logo
EL
(red arrow) LIMITE IMPERIEURE POUSSOIR ENFONCE
(black arrow) LIMITE INFERIEURE POUSSOIR NON ENFONCE
2654226 (assume serial)
Inscriptions on the back:
1EL 3EL (dial)
T.TR.1934
