Precision Optical Protractor Carl Zeiss (0884)

Industry

Dec 6

Index: 0884

Year: ?

Maker: Carl Zeiss, Jena, Germany

Dimensions: 18 x 4 x 8 cm (box)

Info

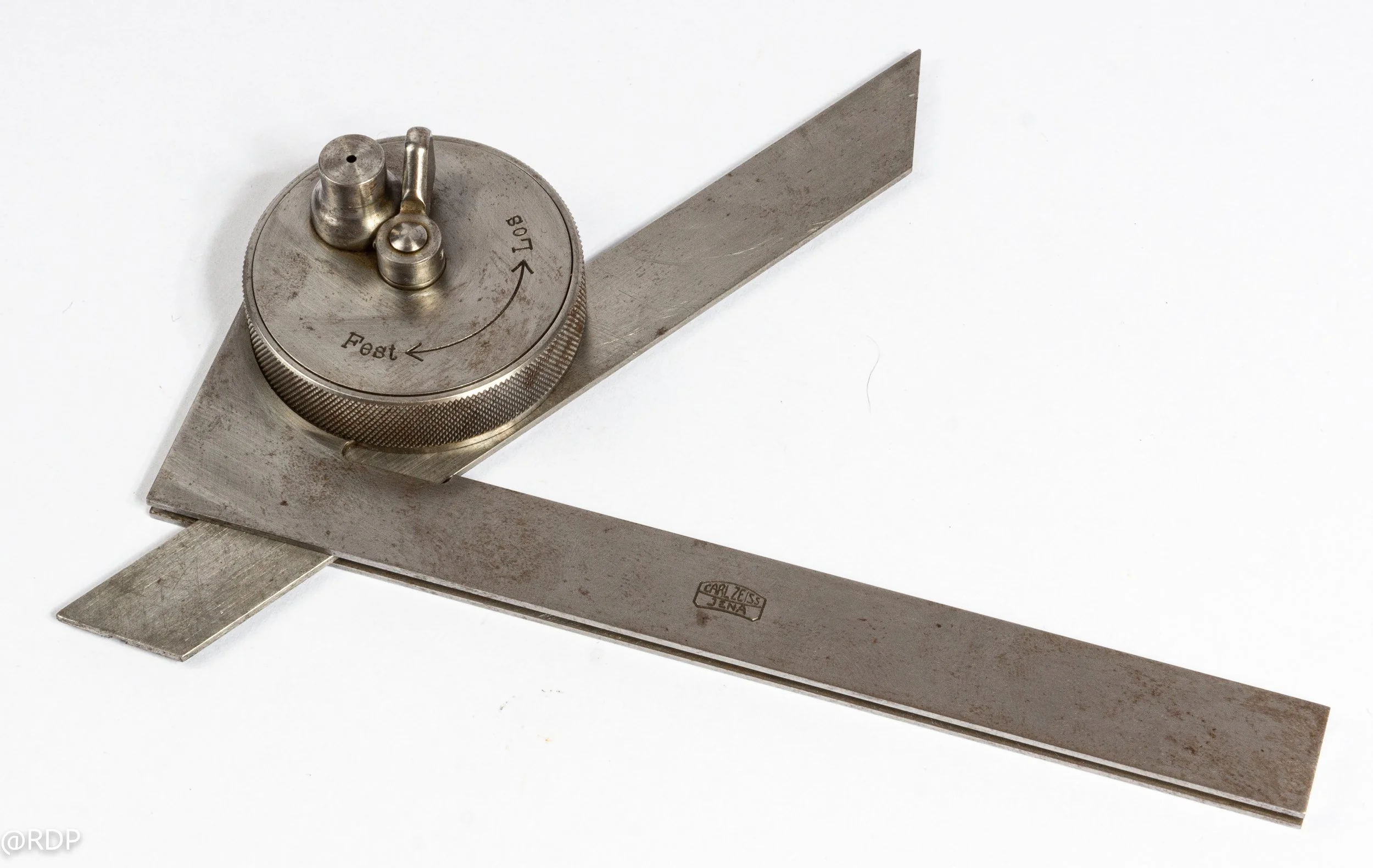

Optical Bevel Protractor for precise measuring of angles. The legs are set to the bevel after which the angle can be read by looking into the very small viewing hole. The scale reads from 0 to 90 to 0. Each degree has 6 subdivisions (5 lines) which would give the instrument a precision of 10 arcminutes.

The locking button reads "Los" (Loose) and "Fest" (Fixed).

The box is painted wood and also bears the logo of Carl Zeiss on the top lid.

Inscriptions:

CARL ZEISS
JENA

On the side of the fixed leg:

329 (Could be the type or the serial ?).
